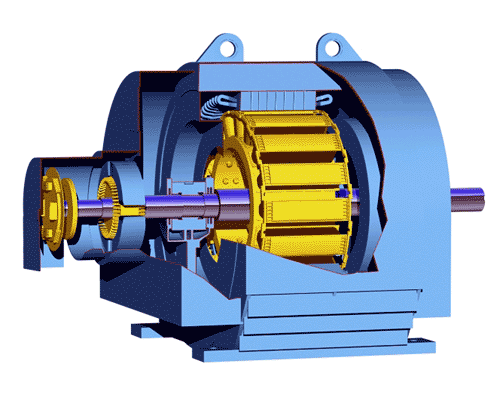

This is a cutaway of an Exciter. This fits onto the end of an electric
generator and excites the fields slightly to greatly increase their
power generation.
The client wanted a classic cutaway to point out the important structural
and functional features of his machine.
This 3-D model was built using only flat blue prints. One of the most
important features of building solids in the computer is how easy it
is to fine tune things.
This same 3D model is used again for an animation, you can see it by
clicking here.
